# AMS1
## In this article we will cover the AMS1 payment terminal.

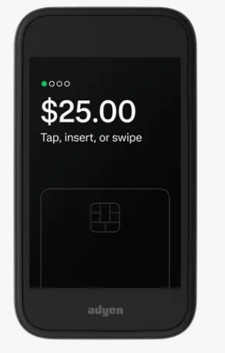

The AMS1 is a Wi-Fi/Cellularly connected payment terminal from Adyen. The AMS1 is what we refer to as a "basic terminal" whereby the device does not run the GoTab app at all. The AMS1 entirely utilizes Adyen payments UI.
**POS w/AMS1**
In this setup, we do not have an accompanying CFD for the guest to choose their tip and submit payment. When that's the case, we utilize the Adyen tipping UI where once the server initiates payment from the POS, the guest is prompted to choose a tip %, custom or no tip amount and submit payment on the AMS1.

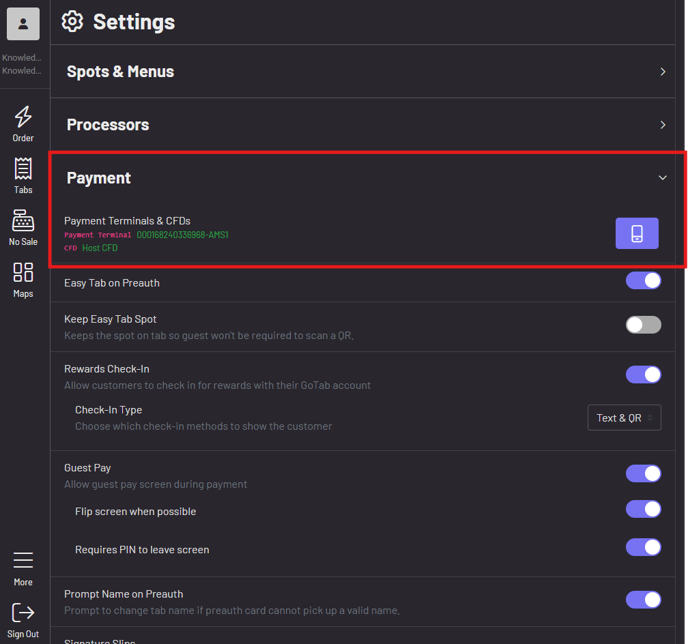

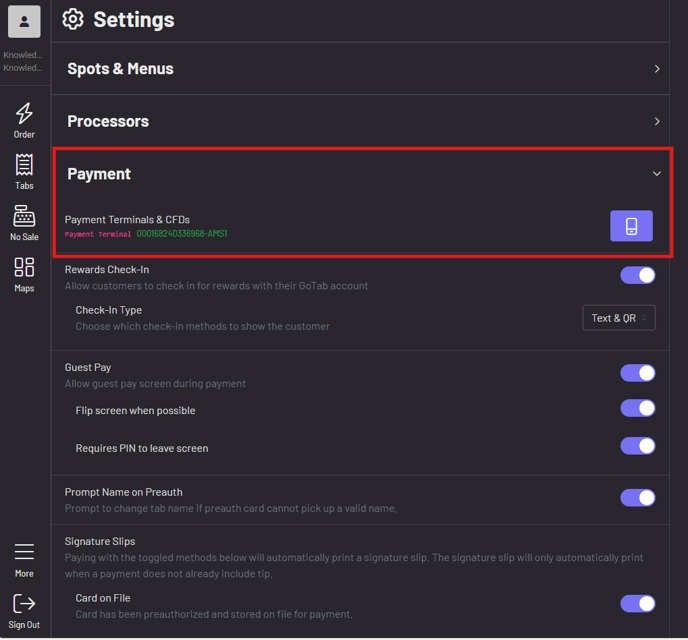

Navigate to More--Settings--Payment--Payment Terminals & CFDs--Click Phone Icon to select AMS1 as your payment terminal in the POS.

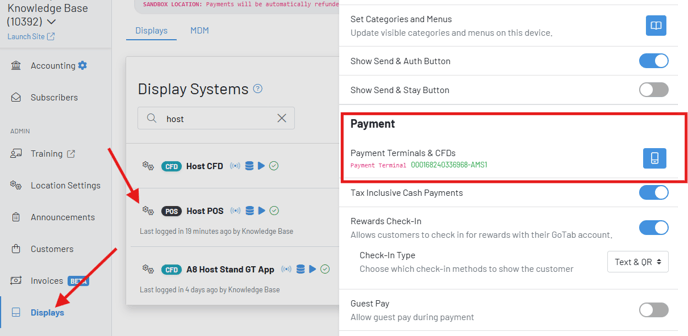

From the [Display Page](https://manager.gotab.io/manager/displays?pick_loc=1) in your manager dashboard, this would look like this. We can click the gear icon on our display and see the AMS1 selected as our payment terminal.

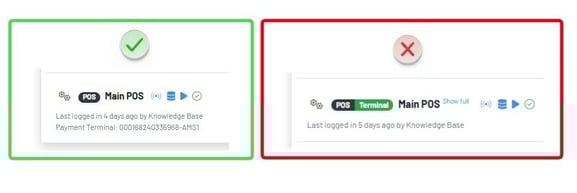

**Note:** If your POS is currently set up as a terminal, you will need to reset your device and set it up as a non-terminal. You can follow [these steps](https://success.gotab.io/knowledge/activate-gotab-pos-app-non-payment-terminal?hsLang=en) to make this change. See below for what a non-terminal (green check) vs. a terminal (red x) looks like on your displays page.
**.jpg?width=577&height=193&name=Correct%20vs%20Incorrect%20AMS1%20and%20POS%20Setup%20(1).jpg) POS/CFD w/AMS1**
In this setup**, **we have a CFD paired to the POS, as well as the AMS1 as the payment terminal.
Navigate to More--Settings--Payment--Payment Terminals & CFDs--Click Phone Icon to select a CFD and choose AMS1 as your payment terminal in the POS.

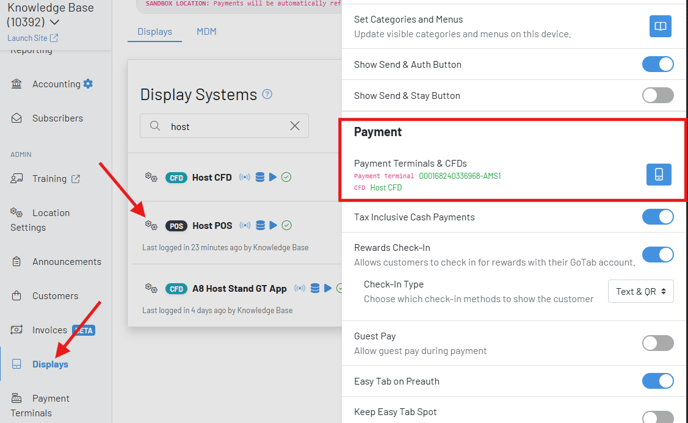

In this configuration of a POS/CFD *and* AMS1, we see that the AMS1 is still selected as the payment terminal but we also have our Host CFD selected now where the guests are prompted to tip and submit payment on the CFD before tapping/inserting credit card on the AMS1.
Click [here](https://success.gotab.io/knowledge/how-to-change-tip-suggestion-calculation?hsLang=en) to learn how to set your suggested tip amounts and different ways to calculate the suggested tip percentage.
